Gas Mapping LiDAR for Quantification of Very High Methane Emission Rates
A Single-Blind Study for Quantification of Methane Emissions Using Gas Mapping LiDAR
We present single-blind test results for quantification of very high emission rates using Bridger Photonics, Inc.’s (Bridger’s) airborne Gas Mapping LiDAR technology. Flowmeter measurements from a controlled release are compared with emission rate quantification estimates from Gas Mapping LiDAR to determine Bridger’s measurement bias and uncertainty.
Introduction & Purpose of Testing
Remotely quantifying the emissions rate of methane gas (the primary constituent in natural gas) is becoming increasingly important across the oil and gas industry. Accurate aggregate emissions rates are critical as inputs to predictive climate models and for policy regarding emissions reduction targets and regulations. Many companies in the oil and gas industry have set voluntary methane emissions reduction goals and some have even tied executive compensation to the achievement of those goals.
To address these emerging applications, Bridger set out to assess the methane emissions rate quantification capabilities of Gas Mapping LiDAR technology, specifically for very high emissions rates.
Since a single very large emitter may constitute a reasonable fraction of an aggregate emission or inventory, it is important that the accuracy with which very high emission rates can be quantified by Gas Mapping LiDAR is well understood. A large quantification error on such a large emitter can lead to relatively high uncertainty in the aggregate inventory and thus must be considered in developing a plan for achieving the emissions reduction goal for a particular application. To get similar averaging for statistically infrequent very large emitters it may be desired to repeat the measurement multiple times to reduce the random error and thereby approach the measurement bias.
Highlights of Methane Emissions Testing of Gas Mapping LiDAR
A few highlights and takeaways from the testing included:
- We observe excellent agreement between Gas Mapping LiDAR quantification and ground flow meters. Our slope was as close as 0.97 with an R^2 of 0.92 (1 is perfect for both), depending on the wind data source. This highlights the accuracy in which Gas Mapping LiDAR can quantify larger emissions.

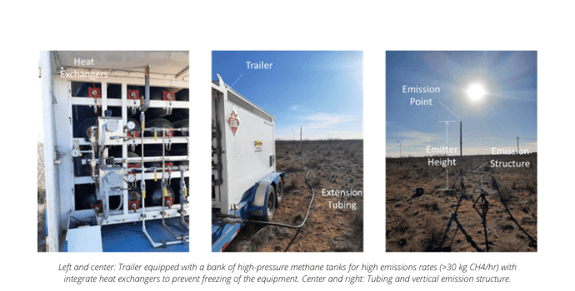

- The testing was conducted by releasing 70 controlled emissions at various amounts. Gas Mapping LiDAR's aggregate emission rate measures for all 70 emitters was within 4% of the aggregate ground-measured emission rate. This excellent aggregate quantification accuracy can be used for better understanding inventories and guiding "certification" efforts.*
- The local wind speed is an important input to Bridger's emission rate quantification. To investigate the reliance on this, the wind speed was determined using several techniques during the experiment to understand accuracy. We found the data supports the use of remote wind interpolation services to achieve accurate quantifications under similar environmental and topographic conditions.
To see the methods, full results, and outcomes of this study, download our whitepaper now.
Have a question about this white paper or more of our capabilities? Contact us by filling out this form and one of our knowledgeable team members will reach out shortly.
*This may be optimistic to expect consistently as explained in the paper… single-digit percent is more reasonable to manage expectations. Regardless, the results provide strong support for the use of GML for quantifying aggregate emissions.
